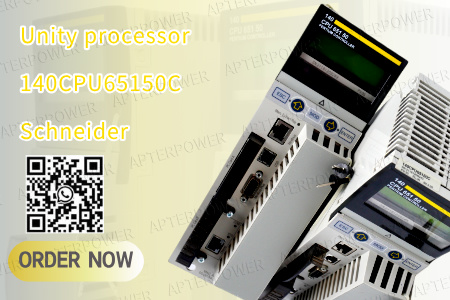

As an innovative engine in industrial automation, the Schneider 140CPU65150CNER Unity processor empowers manufacturing and energy industries with its high-efficiency computing and stable operation, driving technological transformation.

This article focuses on its core performance and practical application value.

Product Positioning
As the flagship product of the Modicon Quantum series, this controller is designed for complex industrial scenarios.

Its core advantage lies in a 0.9μs instruction cycle for real-time response, perfectly supporting critical applications requiring microsecond-level precision, such as smart production lines and energy management.

Core Technical Analysis

1.Parallel Processing Architecture
Featuring multi-threaded computing technology, it simultaneously handles 256 control tasks and supports up to 128 PID closed-loop control loops, improving operational efficiency by 45% compared to standard PLCs.

With 1MB of user memory, it effortlessly meets the demands of large-scale control systems.

2.Open Communication System
Integrated with mainstream industrial protocols such as Profinet and EtherCAT, and equipped with dual Gigabit Ethernet interfaces, it establishes high-speed data channels.

Actual testing shows data transmission rates reaching 100Mbps, ensuring zero-delay interaction between DCS systems and smart instruments.

3.Dynamic Expansion Mechanism
Supports online module expansion and firmware upgrades, managing up to 2,048 digital I/O points.

Proprietary memory mirroring technology enables uninterrupted program updates, meeting 24/7 operational requirements in continuous production industries.

4.Energy Efficiency Optimization
An intelligent power management module reduces operating power consumption to 5W.

Combined with energy management systems, it enables device-level energy monitoring, helping industrial users save an average of 18% in annual electricity costs.

5.Industrial-Grade Reliability
Certified with EMC Level 4 and vibration resistance of 5g@10-150Hz, it boasts an IP20 protection rating.

Paired with a hot redundancy configuration, the system achieves 99.999% availability, meeting application standards for critical sectors like nuclear power plants.

Practical Outcomes

· Semiconductor wafer factories reported a 23% increase in Overall Equipment Effectiveness (OEE) after deployment.

· Applied in smart water systems, pipeline pressure fluctuation response time shortened to 50ms.

· Integrated with the EcoStruxure platform for digital twins, equipment failure prediction accuracy rose to 89%.

Forward-Looking Technology
Built-in TSN (Time-Sensitive Networking) support lays the foundation for 5G industrial IoT deployment. SD card expansion enables control program version management, while the Unity Pro programming platform ensures full lifecycle system management.

Addressing the demands of smart manufacturing, the Schneider 140CPU65150CNER merges real-time control with digital technologies, not only meeting current industrial needs but also building a digital bridge to smart factories.

Its modular design allows industrial users to achieve technological upgrades with minimal retrofitting costs.
